TRILOBITE

The Trilobite is an extremely flexible, high quality dual channel preamplifier paired with routing options required for modern gig setups. The Bullhead EQ section allows for a broad range of tone control including shelving EQ’s for the Bass and Treble controls and variable band pass EQ’s for the Lo Mid and Hi Mid. A parallel and series effect loop, along with two direct outputs, make the Trilobite ideal for the stage or studio. Whether it’s in a pedalboard setup or standalone, you’ll have the most versatile setup possible no matter where you are.

$699.00

$699.00
$18.00
$25.00

*** This pedal requires 12V DC (250mA minimum) ***

US version power supply has the standard wall plug for North America only. The Universal version comes with plugs for worldwide use.

Additional power supplies can be purchased HERE

New redesign for 2021! The Trickfish team has put all of our on the gig experience into the design of the Trilobite to make it a powerful on the gig solution and make your setup as versatile as possible whether you are on the gig, in the studio, or in the shed . The goal was to give you a powerful yet compact piece of equipment that would harness the power of two Bullhead preamps paired with the routing options required for modern gig setups. Once you dive deep with the Trilobite we are confident it will become the centerpiece of your setup and a welcome, portable solution for when you can’t have “your rig” on the gig….. now you can have “your rig” at your feet!

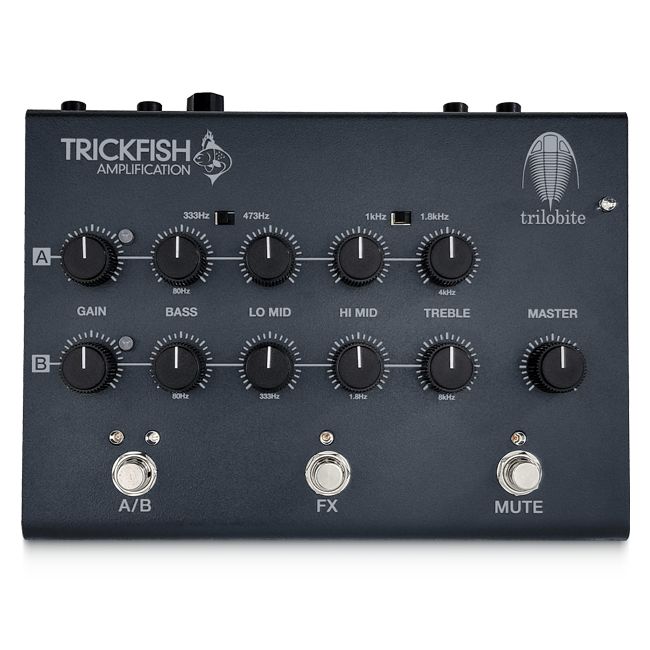

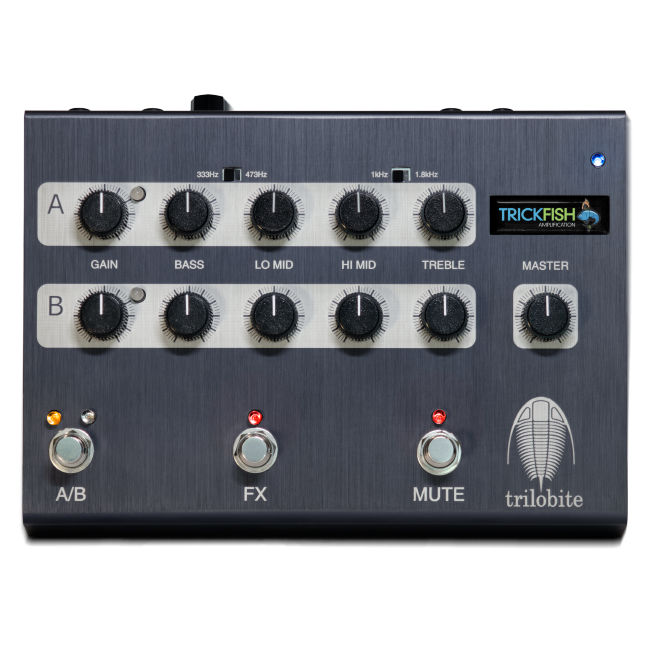

Trilobite Front Panel Features

Trickfish Trilobite Dual Channel Bass Preamp

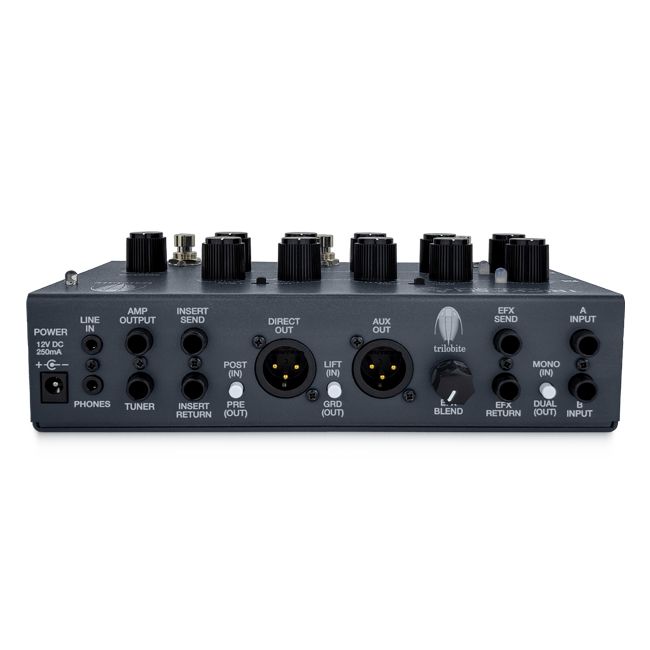

Trilobite Rear Panel Features

Trickfish Trilobite Dual Channel Bass Preamp

Trilobite Overview Videos

Trilobite Overview Videos

Features

Applications

Trilobite Specifications

Pre-Amp: Low noise solid state

Mono/Dual Instrument Inputs: ¼’ Phone with rotary gain control

Input Level Indicator: Signal level and Clip LEDs (green/red)

Channel A EQ: 4 Band with switchable Mid

Shelving Bass and Treble

Low-Mid and Hi–Mid -Variable Gain, Band Pass EQ with selectable frequency/bandwidth options

Channel B EQ: 4 Band

Shelving Bass and Treble

Low-Mid and Hi–Mid -Variable Gain, Band Pass EQ

Master Volume: Rotary Control

Channel A/B Footswitch

FX On/Off Footswitch

Mute Footswitch

Line In: 1/8” mini jack

Headphone Out: Stereo 1/8” mini jack

Tuner Out: ¼” Phone jack

Amp Out: ¼” Phone jack

EFX Loop: Parallel with side-chain dry blend

Insert Loop: Series

Direct Out: 600 Ohm Balanced XLR, Pre/Post, and Ground Lift

AUX Out: 600 Ohm Balanced XLR, Post EQ

Power Requirements: 12V DC (250mA minimum)

Chassis: Aluminum

Removable Rubber Feet: Adhesive backed

Size:

(H x W x D in.) 1.54 front / 2.04 back x 8.50 x 6.03
(H x W x D cm) 3.93 front / 5.20 back x 21.59 x 15.33

Weight: 1.83 lbs / .83 kg

DOWNLOAD THE MANUAL

Trilobite Specifications

Pre-Amp: Low noise solid state

Mono/Dual Instrument Inputs: ¼’ Phone with rotary gain control

Input Level Indicator: Signal level and Clip LEDs (green/red)

Channel A EQ: 4 Band with switchable Mid

Shelving Bass and Treble

Low-Mid and Hi–Mid -Variable Gain, Band Pass EQ with selectable frequency/bandwidth options

Channel B EQ: 4 Band

Shelving Bass and Treble

Low-Mid and Hi–Mid -Variable Gain, Band Pass EQ

Master Volume: Rotary Control

Channel A/B Footswitch

FX On/Off Footswitch

Mute Footswitch

Line In: 1/8” mini jack

Headphone Out: Stereo 1/8” mini jack

Tuner Out: ¼” Phone jack

Amp Out: ¼” Phone jack

EFX Loop: Parallel with side-chain dry blend

Insert Loop: Series

Direct Out: 600 Ohm Balanced XLR, Pre/Post, and Ground Lift

AUX Out: 600 Ohm Balanced XLR, Post EQ

Power Requirements: 12V DC (250mA minimum)

Chassis: Aluminum

Removable Rubber Feet: Adhesive backed

Size:

(H x W x D in.) 1.44 front / 2.5 back x 8.88 x 6
(H x W x D mm) 3.66 front / 6.35 back x 22.56 x 15.24

Weight: 1.86 lbs / .84 kg

DOWNLOAD THE MANUAL
