Minnow

The Minnow is a high quality, low noise bass preamp DI pedal equipped with our Bullhead EQ section. This single channel Bullhead preamp features shelving EQ’s for the BASS and TREBLE controls and variable band pass EQ’s for the LO MID and HI MID. A selectable mid frequency for both LO MID and HI MID controls provide complete control over the midrange. We’ve also added HI SHIFT to the treble frequency to further tune the cut/boost capability of the treble control. In addition, the Minnow preamp includes a tuner out for silent tuning and a balanced XLR output for use as a DI, great for both live and studio use.

$369.00

AVAILABLE 2ND WEEK OF AUGUST
$369.00
$18.00
$25.00

Minnow Features

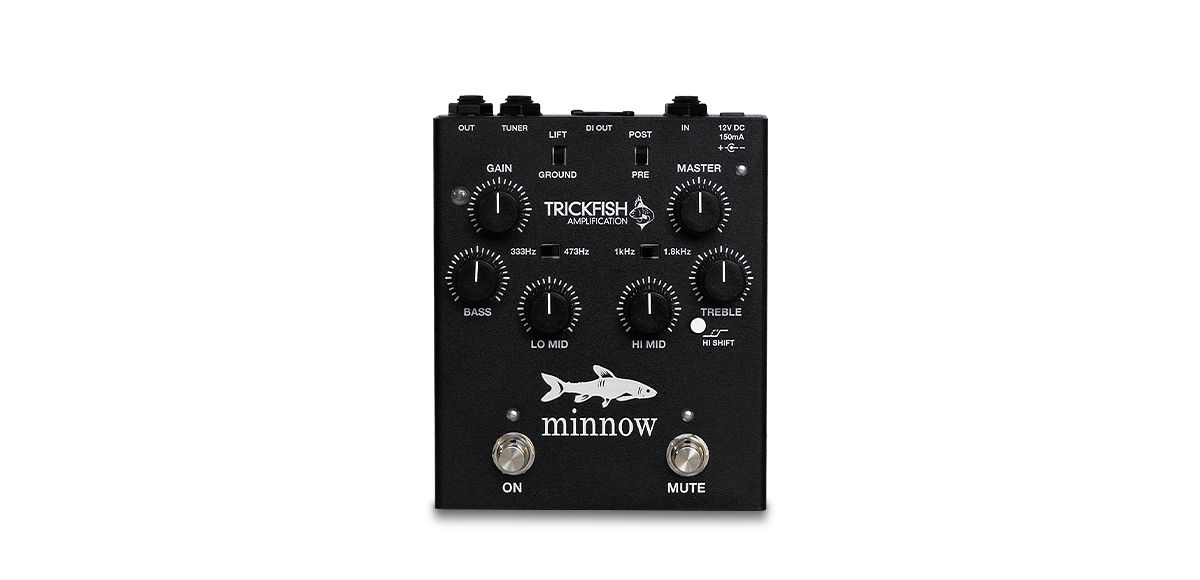

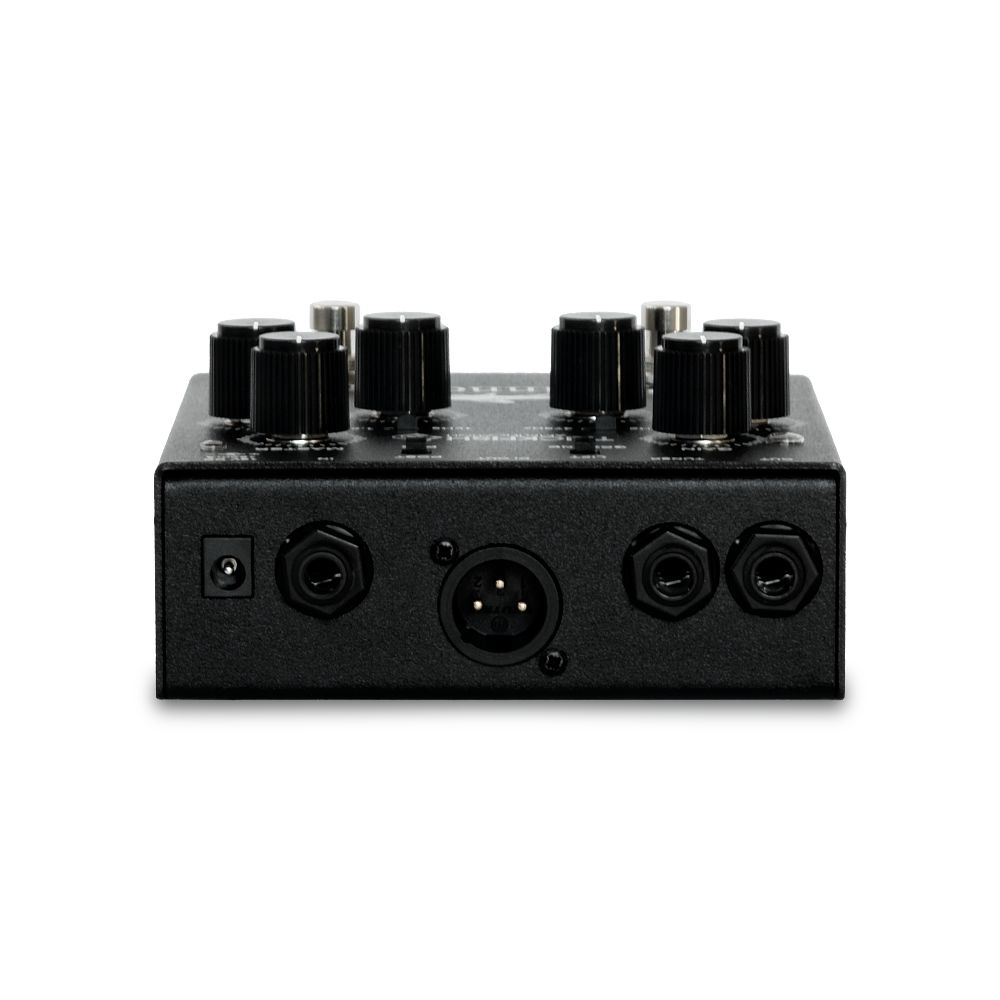

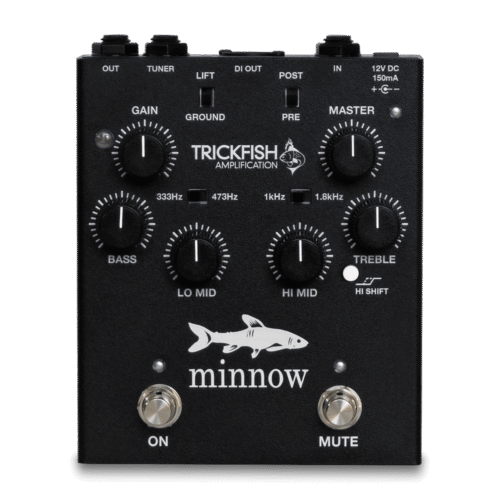

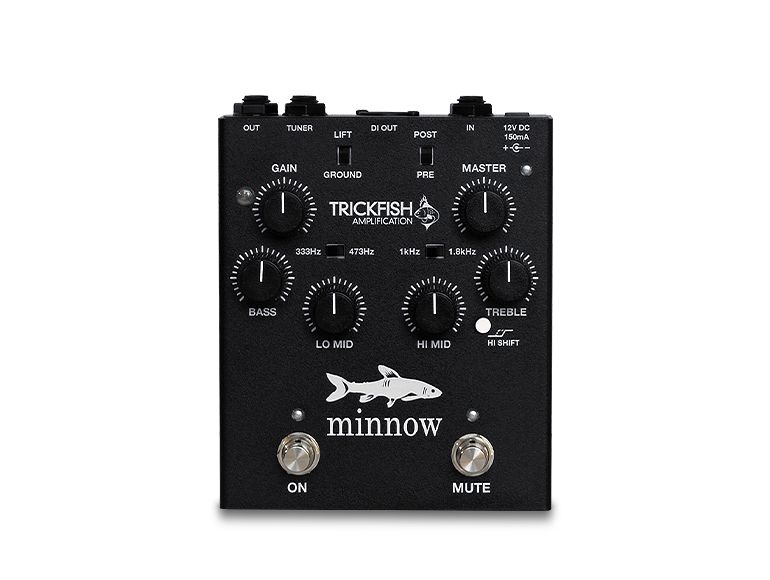

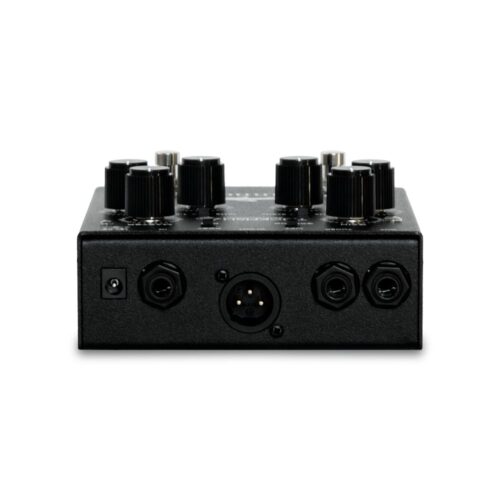

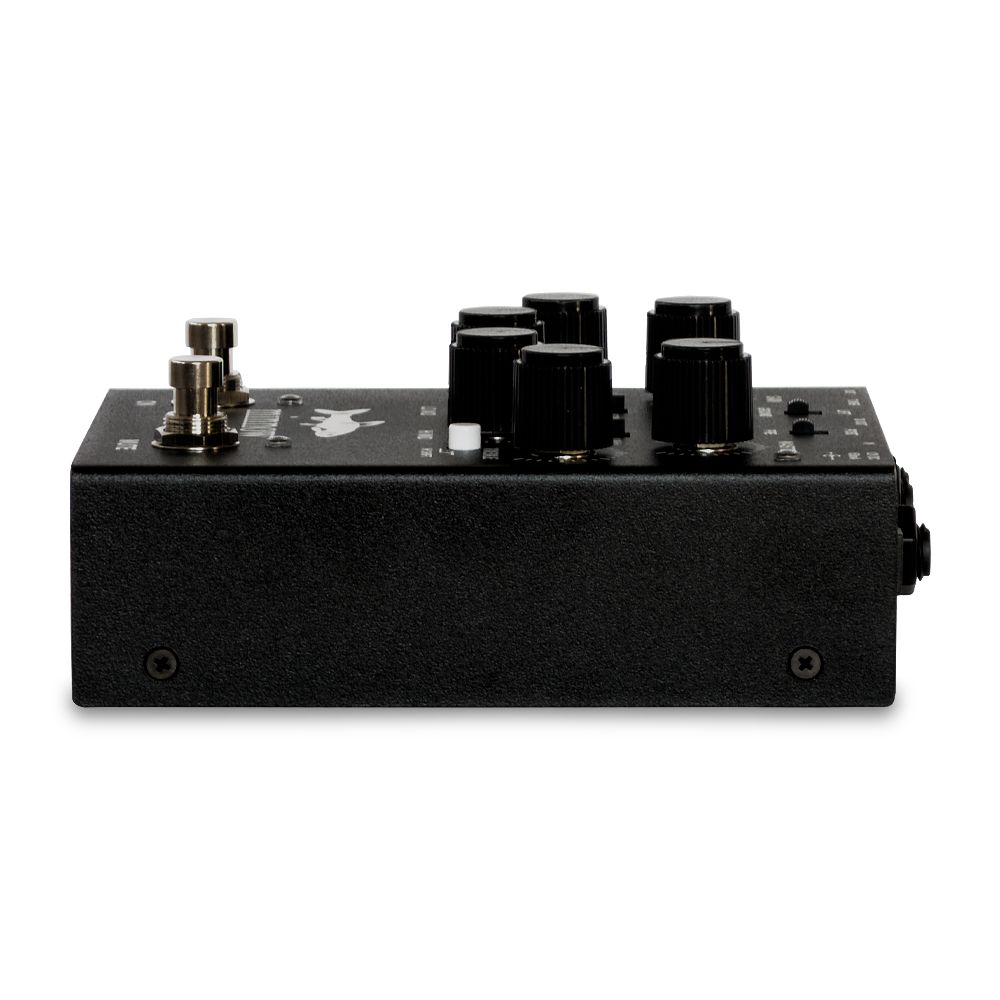

Trickfish Minnow Single Channel Bass Preamp

Trickfish Minnow Single Channel Bass Preamp

Minnow Specifications

Pre-Amp: Low noise solid state

Instrument Input: ¼’ Phone with rotary gain control

Input Level Indicator: Signal level and Clip LEDs (green/red)

EQ: 4 Band (12dB Boost/Cut) with switchable Mid

Shelving Bass (80Hz) and Treble (4KHz / 8KHz selectable)

Low-Mid and Hi–Mid -Variable Gain, Band Pass EQ with selectable frequency/bandwidth options

Master Volume: Rotary Control

EQ On/Off Footswitch

Mute Footswitch

Tuner Out: ¼” Phone jack

Amp Out: ¼” Phone jack

Direct Out: 600 Ohm Balanced XLR, Pre/Post, and Ground Lift

Power Requirements: 12V DC (150mA minimum)

Power Consumption: 150mA

Chassis: Steel

Removable Rubber Feet: Adhesive backed

Size:

(H x W x D in.) 6.05 x 4.86 x 1.74
(H x W x D cm) 15.38 x 12.34 x 4.41

Weight: 1.93 lbs / .88 kg

DOWNLOAD THE MANUAL

Minnow Specifications

Pre-Amp: Low noise solid state

Instrument Input: ¼’ Phone with rotary gain control

Input Level Indicator: Signal level and Clip LEDs (green/red)

EQ: 4 Band (12dB Boost/Cut) with switchable Mid

Shelving Bass (80Hz) and Treble (4KHz / 8KHz selectable)

Low-Mid and Hi–Mid -Variable Gain, Band Pass EQ with selectable frequency/bandwidth options

Master Volume: Rotary Control

EQ On/Off Footswitch

Mute Footswitch

Tuner Out: ¼” Phone jack

Amp Out: ¼” Phone jack

Direct Out: 600 Ohm Balanced XLR, Pre/Post, and Ground Lift

Power Requirements: 12V DC (150mA minimum)

Power Consumption: 150mA

Chassis: Steel

Removable Rubber Feet: Adhesive backed

Size:

(H x W x D in.) 6.05 x 4.86 x 1.74
(H x W x D cm) 15.38 x 12.34 x 4.41

Weight: 1.93 lbs / .88 kg

DOWNLOAD THE MANUAL
