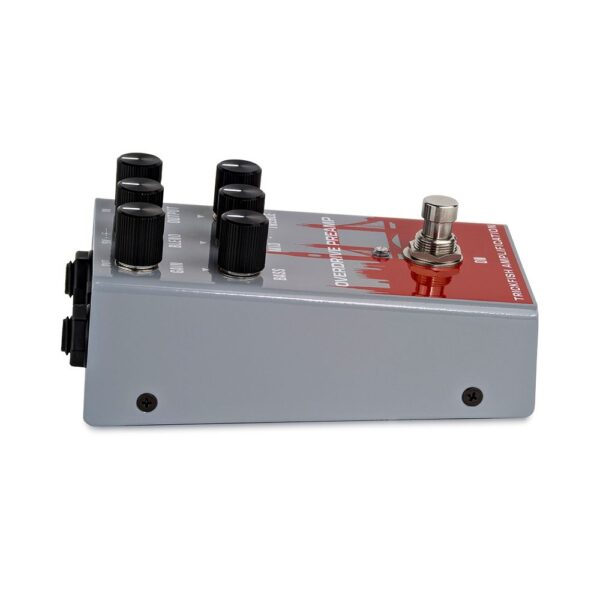

In a sea of overdrives, our Overdrive Preamp seeks to answer to the question: “How can we bring something different to the table?” We wanted an Overdrive that was warm, smooth, creamy, and retained not only fullness in the low end, but the entire dynamic range of your instrument. The Overdrive Preamp delivers a pleasing soft clipping overdrive, with a dry blend knob to mix in as little or as much dirt as you desire. Followed by an onboard 3 band EQ with shelving bass and treble controls, this highly adjustable overdrive with smart tone shaping allows you to perfectly tailor your sound. Dial in everything from creamy, touch-sensitive sparkle to full-on saturated filth, and all things in between. Whether you’re painting your sound with a creamy, touch-sensitive sparkle or pushing it to the limits with full-on saturated distortion, our Overdrive Preamp pedal adapts to your creative vision.

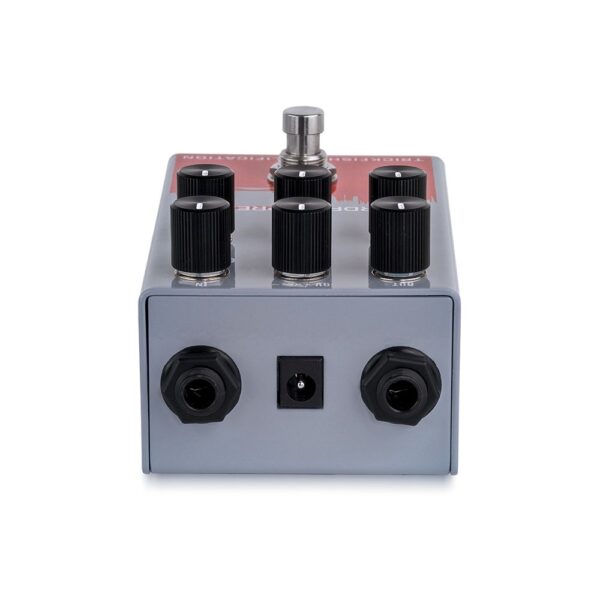

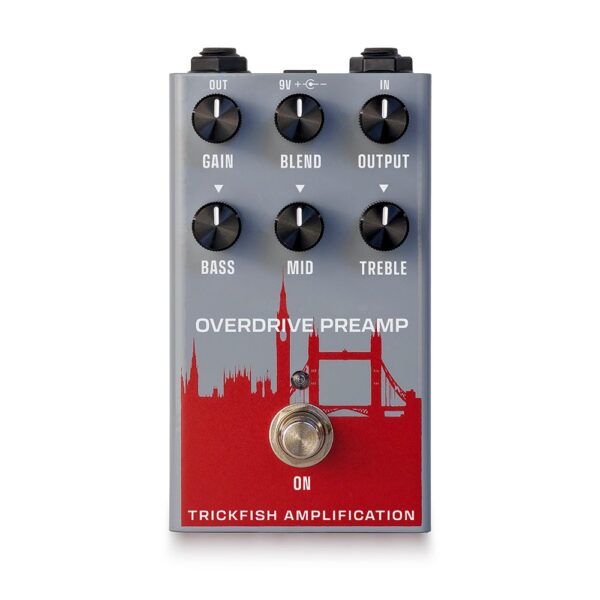

1. OUT: 1/4” phone jack output
2. DC IN: 9V DC power input, center pin negative
3. IN: 1/4” phone jack input
4. GAIN: Adjusts the amount of overdrive
5. BLEND: Sweeps between wet/dry levels
6. OUTPUT: Adjusts the overall output level
7. BASS: Boost/cut 13dB centered @ ~80Hz
8. MID: Boost/cut 15dB centered @ ~1.5kHz
9. TREBLE: Boost/cut 15dB centered @ ~4.8kHz
10. ON: Footswitch toggles effect on/bypass
