BULLHEAD .5K

$799.00

BULLHEAD .5K

$799.00

The Bullhead .5K bass amplifier sets a new performance standard in affordable bass amplification. Featuring the acclaimed Mike Pope low noise pre-amp integrated with a tour proven, 500W @ 8 Ohm/ 700W @ 4 Ohm Class D power amplifier, the BH.5K offers all of the professional features and performance expected of a Trickfish product at a street price of just $799.00. Housed in a robust aluminum chassis, the powerful head offers a wide variety of tone-shaping capabilities via a 4-band EQ and 8 frequency select options. Other features include selectable input sensitivity, aux input, Pre/Post Balanced DI Output, EFX: Series loop, amp mute and a Neutrik Speakon combi-connector. Weighing in at a paltry 5lbs the BH.5K also sports classic “chicken head knobs” for easy, fast adjustments and the rack-mountable chassis is powder coated in a durable, Deep Sea Blue matte finish.

Read more about how the Bullhead amps work.

Bullhead .5K Specifications

Power Output:

8 Ohms: (Continuous Power ‐ 253W @ .13% THD, 365W @1% THD), (Peak 506W @ .13% THD, 730W @1% THD)

4 Ohms: (Continuous Power ‐ 312W @ .13% THD, 702W @1% THD), (Peak 625W @ .13% THD, 1404W @1% THD)

Power Amplifier: Class D with Switch‐Mode Power Supply

Pre‐Amp: Low noise, all analog, solid state

Input: ¼” Phone with switchable attenuation and rotary gain control

Input Level Indicator: Signal level and Clip LEDs (green/red)

EQ: 4 Band Switchable

Shelving Bass and Treble with selectable Hi‐Pass frequencies.

Low‐Mid and Hi ‐Mid ‐Variable Gain, Band Pass EQ with selectable frequency / bandwidth options

Master Volume: Rotary Control

Line In: 1/8″ mini jack

Headphone Out: Stereo ¼” Phone jack

Mute Switch: mini toggle

AC Mains: 85‐132V, 195‐264V, 45‐65 Hz, 1000VA (Worldwide usage)

AC Mains Indicator: Blue LED

EFX Loop: Series

Direct Out: 600 Ohm Balanced, XLR, Pre/Post, Ground Lift and Level control

Speaker Output: 1 x Neutrik Combi‐Connectors

Chassis: Aircraft grade aluminum w/removable rubber feet

Rack Ears (Optional) : Buy Now

Size: (H x W x D in.) 3.3 x 15.1 x 8 (inches)

Weight: 5.0 lbs.

Warranty: 5 year limited

Read or Download the manual

The Bullhead .5K bass amplifier sets a new performance standard in affordable bass amplification. Featuring the acclaimed Mike Pope low noise pre-amp integrated with a tour proven, 500W @ 8Ohm/ 700W @ 4Ohm Class D power amplifier, the BH.5K offers all of the professional features and performance expected of a Trickfish product at a street price of just $799.00. Housed in a robust aluminum chassis, the powerful head offers a wide variety of tone-shaping capabilities via a 4-band EQ and 8 frequency select options. Other features include selectable input sensitivity, aux input, Pre/Post Balanced DI Output, EFX: Series loop, amp mute and a Neutrik Speakon combi-connector. Weighing in at a paltry 5lbs the BH.5K also sports classic “chicken head knobs” for easy, fast adjustments and the rack-mountable chassis is powder coated in a durable, Deep Sea Blue matte finish.

Read more about how the Bullhead amps work.

Bullhead .5K Specifications

Power Output:

8 Ohms: (Continuous Power ‐ 253W @ .13% THD, 365W @1% THD), (Peak 506W @ .13% THD, 730W @1% THD)

4 Ohms: (Continuous Power ‐ 312W @ .13% THD, 702W @1% THD), (Peak 625W @ .13% THD, 1404W @1% THD)

Power Amplifier: Class D with Switch‐Mode Power Supply

Pre‐Amp: Low noise, all analog, solid state

Input: ¼” Phone with switchable attenuation and rotary gain control

Input Level Indicator: Signal level and Clip LEDs (green/red)

EQ: 4 Band Switchable

Shelving Bass and Treble with selectable Hi‐Pass frequencies.

Low‐Mid and Hi ‐Mid ‐Variable Gain, Band Pass EQ with selectable frequency / bandwidth options

Master Volume: Rotary Control

Line In: 1/8″ mini jack

Headphone Out: Stereo ¼” Phone jack

Mute Switch: mini toggle

AC Mains: 85‐132V, 195‐264V, 45‐65 Hz, 1000VA (Worldwide usage)

AC Mains Indicator: Blue LED

EFX Loop: Series

Direct Out: 600 Ohm Balanced, XLR, Pre/Post, Ground Lift and Level control

Speaker Output: 1 x Neutrik Combi‐Connectors

Chassis: Aircraft grade aluminum w/removable rubber feet

Rack Ears (Optional) : Buy Now

Size: (H x W x D in.) 3.3 x 15.1 x 8 (inches)

Weight: 5.0 lbs.

Warranty: 5 year limited

Read or Download the manual

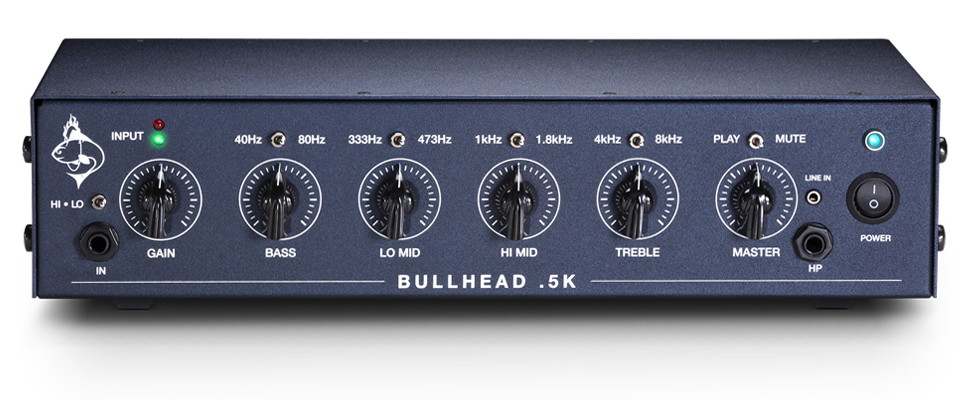

Bullhead .5K Front Panel Features

1. Instrument Input: ¼” phone plug line input

2. Input Attenuator: 0,+9db of gain to accommodate active or passive inputs

3. Input Level Indicator: 2 segment LED ladder indicates amount of gain after EQ, FX circuit

4. Input Gain: Input level adjust

5. Bass EQ Cut/Boost: Center detent is flat. Counter clockwise cuts, clockwise rotation boosts

6. Bass EQ Frequency Select: Selects frequency for the shelving bass EQ

7. Low Mid Cut/Boost: Center detent is flat. Counter clockwise cuts, clockwise rotation boosts

8. Low Mid Frequency Select: Selects the frequency for the Low‐Mid Bandpass EQ

9. Hi Mid Cut/Boost: Center detent is flat. Counter clockwise cuts, clockwise rotation boosts

10. Hi Mid Frequency Select: Selects the frequency for the Hi‐Mid Bandpass EQ

11. Treble EQ Cut/Boost: Center detent is flat. Counter clockwise cuts, clockwise rotation boosts

12. Treble EQ Frequency Select: Selects the frequency for the shelving Treble EQ

13. Master Volume: Controls the overall volume of the amplifier

14. Amplifier Mute: Mutes the signal to the amplifier and to the DI

15. Headphone Output: ¼” stereo phone plug for headphone monitoring

16. Line Input: 1/8″ mini plug accommodates MP3 players and any other input sources

17. AC Mains on/off: Power on/off

18. Power on/off LED indicator: Illuminated blue LED indicates power is on no light means power is off

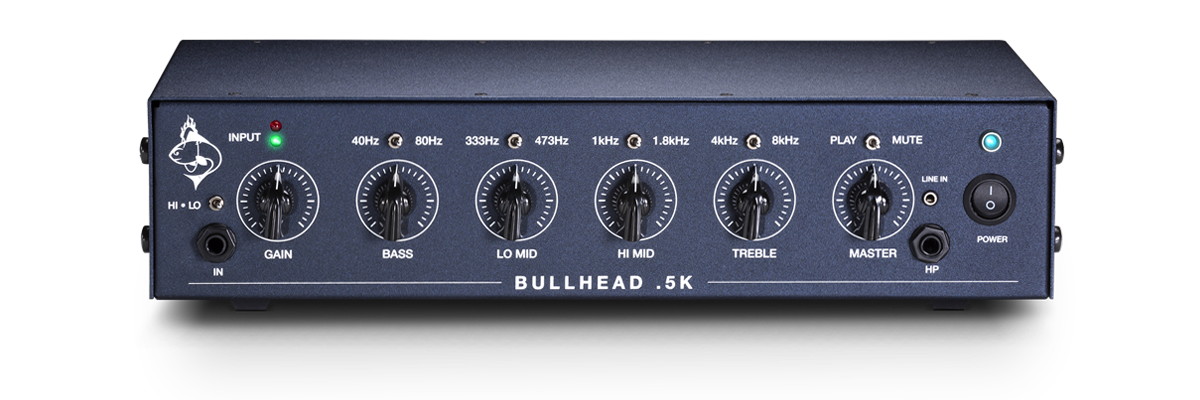

Bullhead .5K Front Panel Features

1. Instrument Input: ¼” phone plug line input

2. Input Attenuator: 0,+9db of gain to accommodate active or passive inputs

3. Input Level Indicator: 2 segment LED ladder indicates amount of gain after EQ, FX circuit

4. Input Gain: Input level adjust

5. Bass EQ Cut/Boost: Center detent is flat. Counter clockwise cuts, clockwise rotation boosts

6. Bass EQ Frequency Select: Selects frequency for the shelving bass EQ

7. Low Mid Cut/Boost: Center detent is flat. Counter clockwise cuts, clockwise rotation boosts

8. Low Mid Frequency Select: Selects the frequency for the Low‐Mid Bandpass EQ

9. Hi Mid Cut/Boost: Center detent is flat. Counter clockwise cuts, clockwise rotation boosts

10. Hi Mid Frequency Select: Selects the frequency for the Hi‐Mid Bandpass EQ

11. Treble EQ Cut/Boost: Center detent is flat. Counter clockwise cuts, clockwise rotation boosts

12. Treble EQ Frequency Select: Selects the frequency for the shelving Treble EQ

13. Master Volume: Controls the overall volume of the amplifier

14. Amplifier Mute: Mutes the signal to the amplifier and to the DI

15. Headphone Output: ¼” stereo phone plug for headphone monitoring

16. Line Input: 1/8″ mini plug accommodates MP3 players and any other input sources

17. AC Mains on/off: Power on/off

18. Power on/off LED indicator: Illuminated blue LED indicates power is on no light means power is off

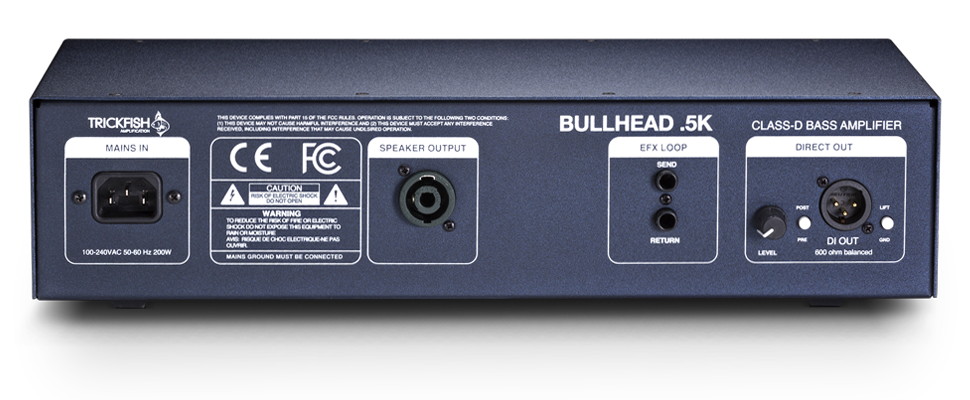

Bullhead .5K Rear Panel Features

1. AC Mains Input: Attach supplied cable firmly into socket

2. Speaker Output: Neutrik Combi‐connector accommodates both Speakon and 1/4″ phone plugs

3. EFX Loop Send: 1/4″ phone jack routes the signal TO the destination device

4. EFX Loop Return: 1/4″ phone jack returns the signal FROM the destination device

5. Direct Out Level Control: Rotary knob controls the level of output to the intended destination

6. Direct Out Pre/Post select switch: Switches between a Pre‐EQ/FX or Post‐EQ/FX send

7. Direct Out XLR: Balanced Female XLR connection

8. Direct Out Ground Lift Switch: Ground lift dedicated to Direct Out

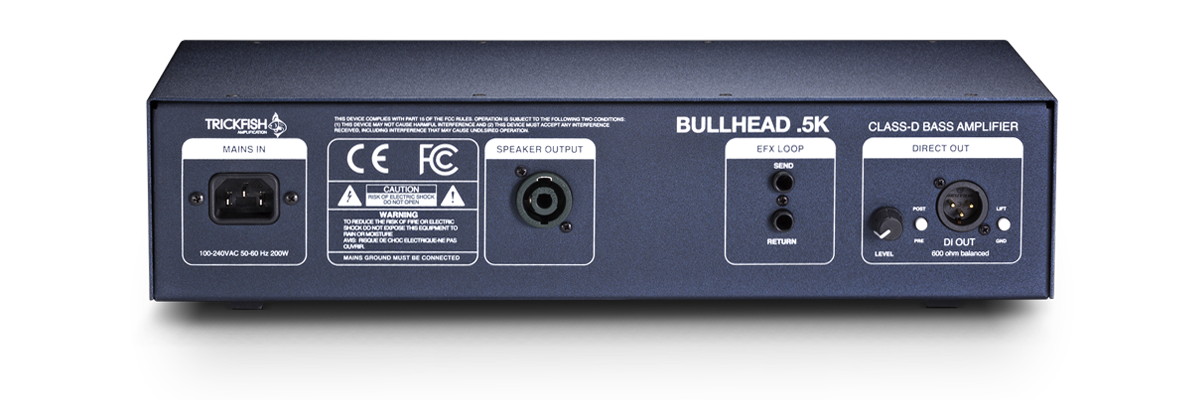

Bullhead .5K Rear Panel Features

1. AC Mains Input: Attach supplied cable firmly into socket

2. Speaker Output: Neutrik Combi‐connector accommodates both Speakon and 1/4″ phone plugs

3. EFX Loop Send: 1/4″ phone jack routes the signal TO the destination device

4. EFX Loop Return: 1/4″ phone jack returns the signal FROM the destination device

5. Direct Out Level Control: Rotary knob controls the level of output to the intended destination

6. Direct Out Pre/Post select switch: Switches between a Pre‐EQ/FX or Post‐EQ/FX send

7. Direct Out XLR: Balanced Female XLR connection

8. Direct Out Ground Lift Switch: Ground lift dedicated to Direct Out
